Industrial Rubber Coating for Metal — Steel Protection Guide
Industrial rubber coating is a category of protective paint products designed to protect metal surfaces — structural steel, tanks, pipelines, fencing, machinery — from corrosion, chemical attack, thermal stress, and mechanical wear. Unlike consumer-grade rust paint or alkyd enamel, industrial rubber coating is formulated to perform in demanding environments for 10–15 years.
This guide explains how rubber-based industrial coatings work, where they outperform two-component polyurethane systems, and which specifications matter when comparing products.
What is industrial rubber coating?
Industrial rubber coating typically refers to a single-pack, water-based, acrylic-latex coating with high elastomer content (often 30–40% by volume of solids). The result is a tough, flexible membrane that bonds directly to steel — even over light surface rust — and accommodates the thermal movement of large metal structures.
Key properties of a quality industrial rubber coating:
- Elongation at break: 300%+ (DIN ISO 527)
- Adhesion to steel: 1.5+ MPa (pull-off test, EN 1542)
- Water permeability: Class W3 (lowest) per EN 1062-3
- UV resistance: Class A0 per EN 1062-7
- Salt-spray resistance: 1,000+ hours per ASTM B117
- Service temperature: –20 °C to +50 °C continuous, +80 °C short-term
- VOC content: < 30 g/L (compliant with EU 2004/42/EC)
Where industrial rubber coating is used

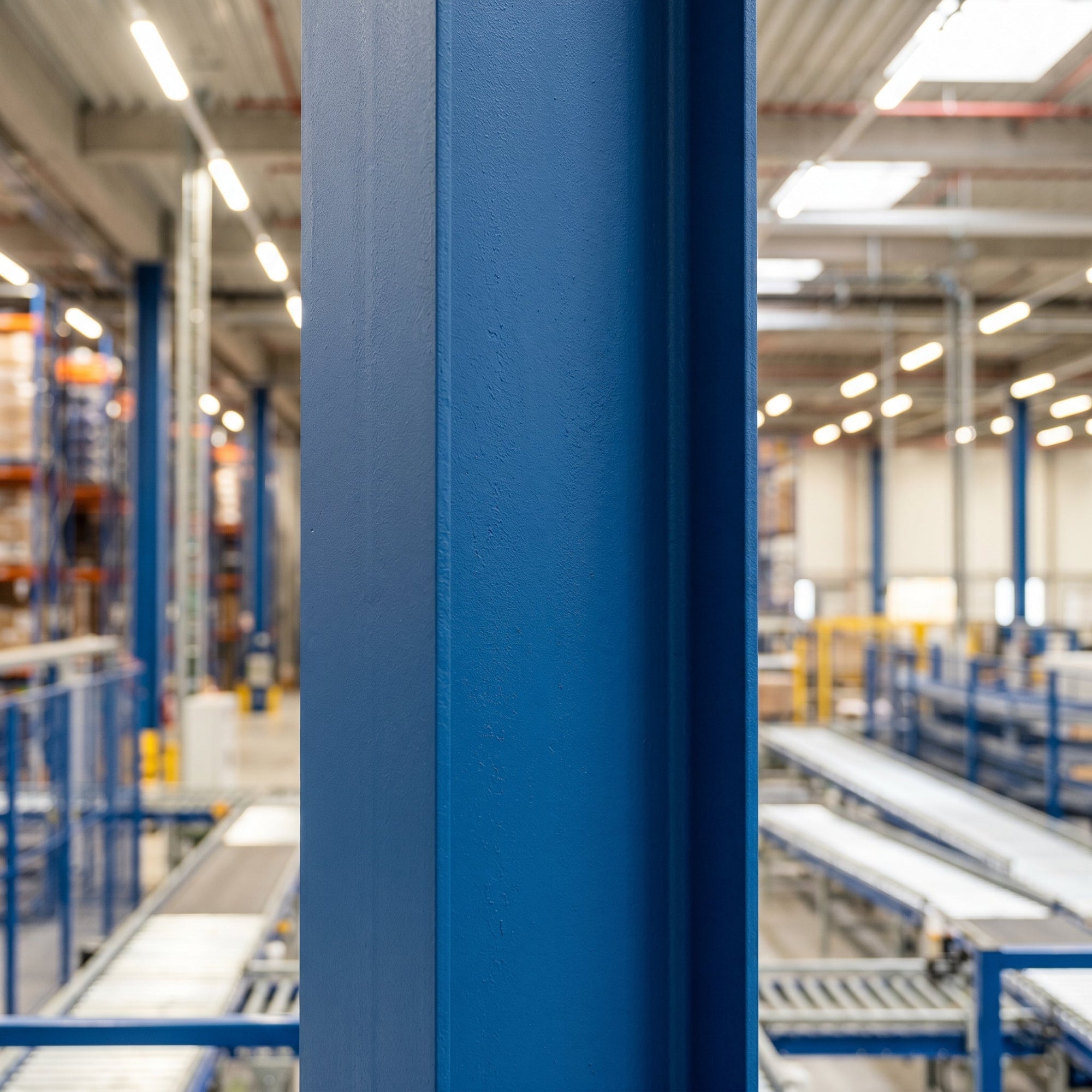

Structural steel
I-beams, columns, lattice trusses in warehouses and factory buildings. The flexibility of rubber coating accommodates thermal expansion better than rigid alkyd or epoxy systems, particularly at welded joints.
Tank exteriors
Water tanks, brine tanks, fuel tanks (exterior only), and chemical storage tanks. The coating provides UV protection and reduces solar heat gain in summer — especially important for pressurised gas tanks.
Pipelines and ductwork
External corrosion protection for above-ground pipes, including gas, water, and process lines. The elastic coating handles temperature cycling without cracking at supports and brackets.
Trapezoidal sheet and corrugated steel
Industrial roof and wall cladding. Industrial rubber coating extends the life of zinc-coated steel by 15–20 years and is compatible with both new and aged surfaces.
Fencing, gates, and security barriers
Long-life protection that resists graffiti (washable Class 1 per EN 13300) and chemical splash.
Machinery and conveyors
External painting of conveyor frames, mounting brackets, and exposed steel components on industrial equipment.
Industrial rubber coating vs. 2K polyurethane
| Property | Rubber coating | 2K Polyurethane |
|---|---|---|
| Application | Single-pack, ready to use | Two-component with pot life |
| Surface prep needed | Direct over light rust | Sand-blasting to Sa 2.5 |
| Elongation | 300%+ | Typically 5–10% |
| VOC | Water-based, low VOC | High VOC |
| Chemical resistance | Good (water, salt, mild acids) | Excellent (strong solvents OK) |
| Cost per m² | €3–6 (materials + labour) | €15–30 |
| Lifespan on steel | 10–15 years | 15–20 years |
Rubber coating wins on application simplicity and cost; 2K polyurethane wins on ultimate chemical and abrasion resistance for the most demanding industrial environments.
Application: industrial best practices
- Surface inspection: remove all loose rust, scale, and dirt with wire brush or low-pressure media blast (not required for full white-metal blast)
- Degrease: wipe oily areas with isopropyl alcohol or industrial degreaser
- First coat: 5–10% water dilution for maximum penetration into surface micro-roughness. Apply at 150 g/m² with airless sprayer (15–18 MPa, 0.021"–0.023" nozzle)
- Reinforce stress points: embed polyester fleece at welds, bolted connections, and exposed edges
- Second coat: undiluted, 150 g/m², cross-applied to the first
- Total dry film thickness: 0.5–0.8 mm in two coats
Cure schedule: touch-dry 2h, recoatable 4h, full cure 28 days. Application temperature range: +10 °C to +30 °C.
B2B procurement
For industrial customers, key procurement considerations:
- Container sizes: 6 kg buckets for most applications (~20–30 m² per bucket); bulk options for 50+ bucket orders
- Custom RAL pigmenting: available from 100 kg orders
- Technical data sheets: EN 1062-3, EN 1062-7, EN 13300 certifications
- VOC compliance: EU 2004/42/EC certified
- Delivery: EU-wide direct shipping, typical lead time 2–5 business days
Conclusion
Industrial rubber coating is the cost-effective alternative to two-component polyurethane systems for most outdoor steel protection applications. The combination of single-pack application, direct-over-rust capability, 300% elongation, and Class A0 UV resistance delivers 10–15 years of service life at a fraction of the cost of professional 2K systems.
